Optical Flow System 4K ISO9001 720P Aerial Camera Drones Ultrasonic Altitude Sytem

Brand Name : NLD

Model Number : NTA-CFLY-1

Certification : ISO9001 CE FCC

Place of Origin : China

MOQ : 1set

Price : Negotible

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 100sets/month

Delivery Time : 20days

Packaging Details : Oxford bag

Name : Aerial camera drone

Camera : Sony camera

Gimbal : 3 axis gimbal

Satellite Positioning system : GPS / GLONASS

Positioning system : Optical flow system

Altitude system : Ultrasonic altitude sytem

Contact Now

Aerial Camera Drone with HD 4K Sony Camera GPS Positioning Optical Flow System Ultrasonic Altitude System

Optical Flow System 4K ISO9001 720P Aerial Camera Drones Ultrasonic Altitude Sytem

Specification

1. Aircraft

Size(Fold)	17010874mm(LWH)
Size(Unfold)	18025574mm(LWH)
Wheelbase	280mm
Weight	515g
Max Ascent Speed	Clam mode: 2m/s Normal mode: 2m/s Sport mode: 5m/s
Max Descent Speed	Clam mode: 1.5m/s Normal mode: 1.5m/s Sport mode: 2m/s
Max Speed	Clam mode: 5m/s Normal mode: 10m/s Sport mode: 19m/s
Max Service Ceiling Above Sea	5000m
Max Fight Time	35mins
Satellite Positioning Systems	GPS/GLONASS
Hover Accuracy Range	Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system works) Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works)
Maximum Flight Height	120m(Maximum 500m(Need to change setting on app))
Operating Temperature Range	0℃-40℃

2. Optical flow system

Operating Environment	Surface with clear pattern and adequate lighting(lux>15)
Velocity Range	≤1.5m/s at 6.6 ft (2m) above ground
Altitude Range	0.2-4.5m

3. Ultrasonic altitude system

Operating	Except for surface of water or ground of absorbing material(such as thick carpet)
Velocity Range	≤3m/s
Altitude Range	0.2-4.5m

Optical Flow System 4K ISO9001 720P Aerial Camera Drones Ultrasonic Altitude Sytem

4. 3-axis Gimbal

Controllable

Pitch: -90°-0°

Stabilization

Pitch: +30/-120°

Roll: ±35°

Yaw: ±30°

5. Camera

Sensor	Ambarella A12, SONY CMOS
Image Size	5120*3840(20MP)
Shooting mode	Single shot
Video Recording Resolution	3840*2160
Maximum Video Bit	60Mbps
Supported File Systems	FAT32(<=32GB)/exFAT(>32GB)
Photo	JPEG
Video	MP4
Supported SD Cards	Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required
Operating Temperature Range	0℃-40℃

6. Battery

Capacity	3100mAh
Voltage	11.4V
Battery Type	LiPo 3S
Energy	35.34Wh
Net Weight	196g
Max charging power	35W
Charge time	<5h(with 5V 2A adapter)
Charging Temperature Range	0℃-40℃

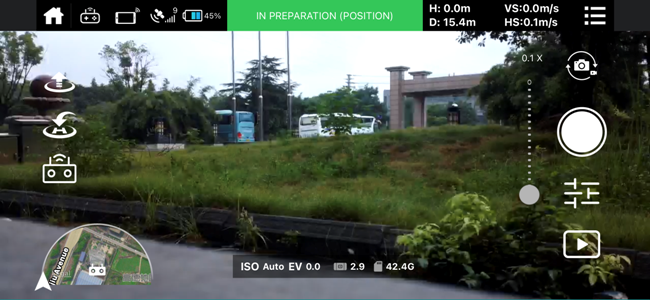

7. APP

Mobile APP	C-Fly 2
Live View Quality	720P
Aerial Photography mode	dronie, rocket, circle, helix
Required Operating Systems	Andrio 5.0 above, ISO 9.0 above
FPV Transmission Distance	5000m

8. Charger

Input	5V 2A(recommend)
Output	4.35V 0.7A*3
Rated Power	10W

9. Remote Controller

Operating Frequency	5.8GHz
Max Transmission Distance	5000m
Transmitter Power(EIRP)	FCC: ≤23dBm CE: ≤14dBm SRRC: ≤20dBm
Operating Current/Voltage	500mA@3.7V
Capacity	2600mAh
Battery Capacity(built-in)	3.7V
Battery Type	LiPo 18650 1S
Battery Power	9.62Wh
Operating Temperature Range	0℃-40℃
Supported Mobile Device Size	Thickness Supported: 6.5-8.5mm
Charge	USB
Maximum Charge Power	5W
Charge Time	<3h(with 5V 2A adapter)

Optical Flow System 4K ISO9001 720P Aerial Camera Drones Ultrasonic Altitude Sytem
